ABET Core Backplane
Model 80964/80965/80966

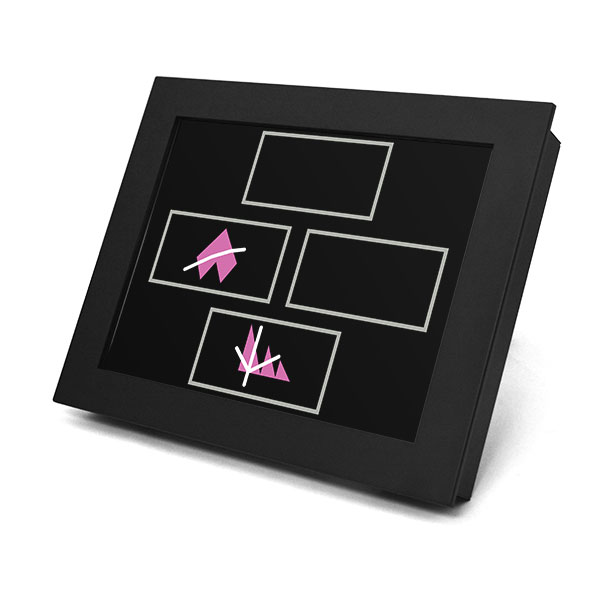

Designed with flexibility in mind, this touchscreen's compact form fits seamlessly into cages or any controlled testing space.
What is the Backplane?
Monkey CANTAB Intellistations are recognized as a benchmark in primate cognitive assessment. In response to technological advances and evolving user needs, Lafayette has redesigned the Intellistation, creating a more compact model with enhanced features and streamlined controls.

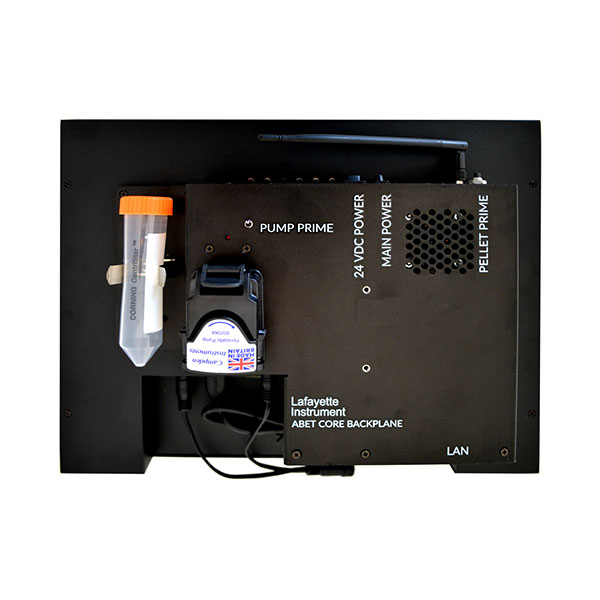

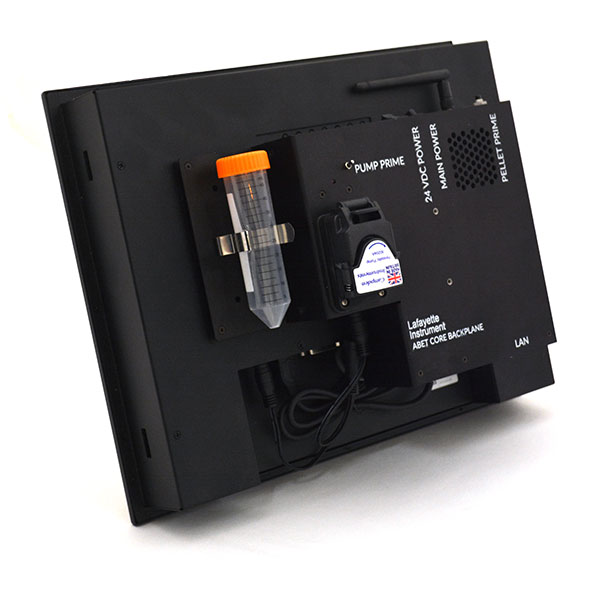

This smaller/lighter form factor supports mounting in home cages or other testing enclosures. With all electronics enclosed and mounted on the back of the unit, the subject is presented with a clean front display with no hardware distractions.
How does the Backplane work?
Each station uses an onboard microcomputer to control the unit. All user interaction is made via a networked control computer running ABET Cognition software. Users no longer need to remote-in or use a dedicated keyboard/mouse to manipulate individual units like previous CANTAB systems.
The same easy-to-use interface remains, but with expanded feature sets to provide open access for labs to write their own paradigms, upload custom stimuli (images, videos, or audio files), and create analysis workflow.
Available Options
12" Backplane System
Model 80964
15" Backplane System
Model 80965
17" Backplane System
Model 80966
Features
- Controlled by ABET Cognition software.
- Supports user-created custom paradigms.
- Unit is easily installed in a testing or home chamber environment.
- Splash-proof IR touch screen with LCD monitor.
- IR touch array with tempered glass for increased durability.
- Touchscreen panel encased in a durable stainless steel metal frame.
- Calibrated 12.2ml flow rate peristaltic pump with receptacle for liquid reward.
- Speaker to pair audio cues to the subject.
Specifications
| Screen | Dimensions | Weight | |
| 80964 | 12" | 11.38" x 9.31" x 5.17" | 8 lbs |
| 80965 | 15" | 15.04" x 11.89" x 5.60" | 11 lbs |
| 80966 | 17" | 15.02" x 11.88" x 5.60" | 15 lbs |
