9000SMZ Vibratome | High-Precision Vibrating Microtome

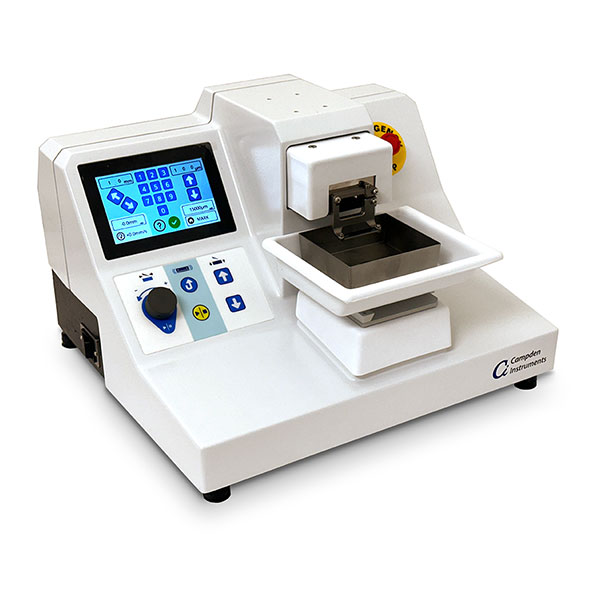

Model 9000SMZ
The Vibratome 9000SMZ is a high-precision vibrating microtome designed for neuroscience, cardiac, lung, liver, organoid, plant research and histology. Slice live and fixed tissue with accuracy and ease.
The New Standard in Precision Tissue Slicing
Advanced Vibratome Technology for Life Science and Biomedical Research

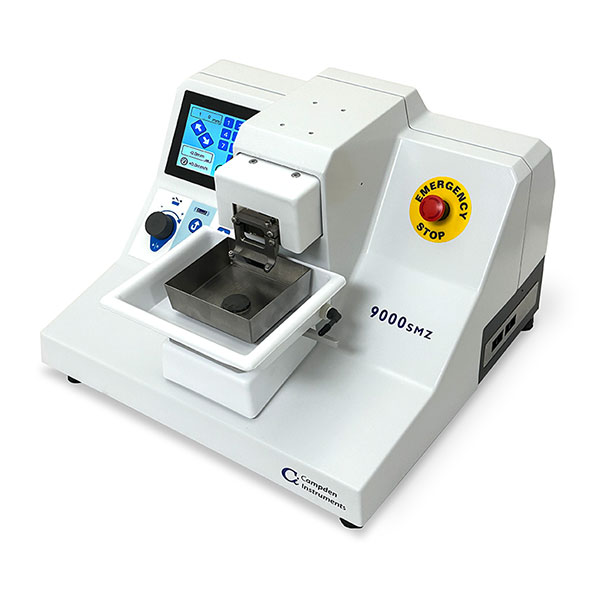

The Campden 9000SMZ Vibratome is our most advanced vibrating microtome, engineered for precise sectioning of live and fixed brain tissue. Trusted by neuroscience, cardiac, lung research, liver research, organoid research and plant research labs worldwide.
When your research depends on high-integrity tissue slices, compromise is not an option. The 9000SMZ Vibrating Microtome by Campden Instruments delivers unmatched control, slice quality, and tissue viability — making it the ideal vibratome for applications across electrophysiology, imaging, pathology, toxicology, and organ research.
Whether you're preparing slices of brain, kidney, lung, liver, retina, cardiac, pancreatic, brain organoids, tumour or plant tissue, the 9000SMZ provides the precision and reproducibility that today’s life sciences demand.
One Vibratome, Endless Applications
- Neuroscience & electrophysiology
- Renal, Precision Cut Liver Slices, Precision Cut Lung Slices, and cardiovascular research (living myocardial slices).
- Plant root and leaf sectioning
- Retinal and ocular tissue preparation
**Read our GUIDE on vibratomes**
Entorhinal Cortex Slice from 9 month-old Rat
Superior Tissue Integrity Across Applications
- Ultra-low blade Z-axis deflection minimizes mechanical damage.
- Maintains structural and cellular viability in a wide range of soft tissues.
- Ideal for acute slicing, live tissue studies, ex vivo analysis, and long-term cultures

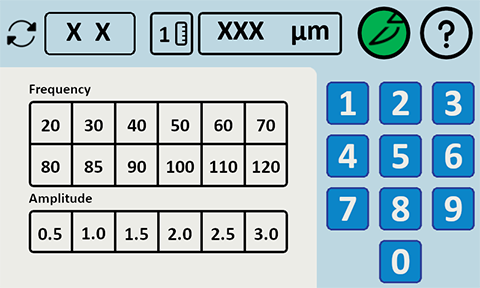

Parameters Screen
Smart, Automated Control System
- Touchscreen interface with programmable slicing profiles.
- Real-time feedback on blade amplitude, frequency, and advance rate.
- Minimizes training time and user-to-user variability.

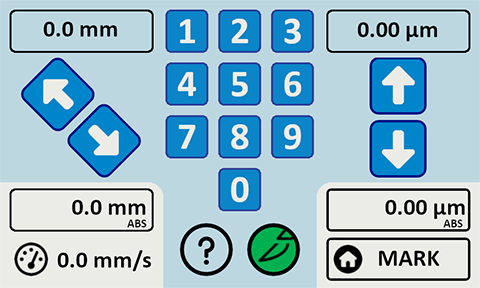

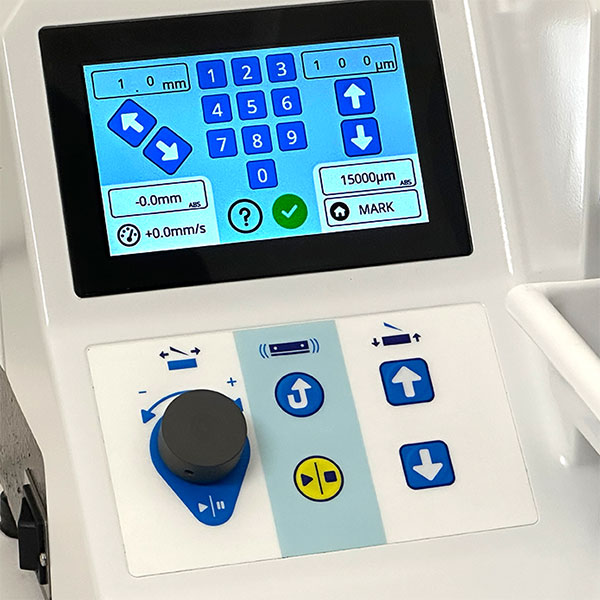

Move Screen

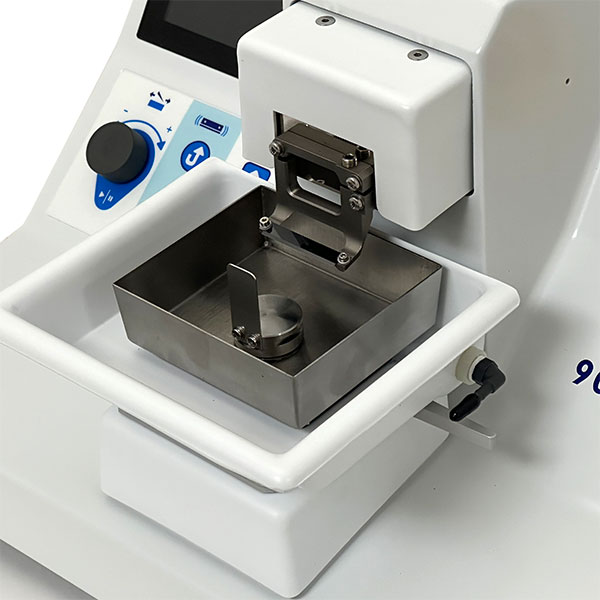

High-Precision Engineering
- Advance speed resolution of 10µm/s for reproducible section thickness
- Vibrating Blade holder has less than 0.1µm (100nm) deviation from path
- Compatible with a range of tissue sizes and embedding media

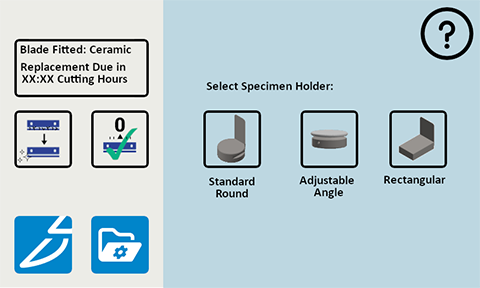

Preparation Screen
Built-In Tissue Protection
- Integrated cooling tray maintains physiological conditions
- Optional integrated Peltier cooling device
- Optimised for extended slicing sessions without compromising slice quality
Designed for Scientists, Backed by Innovation
Campden Instruments has collaborated with leading researchers across disciplines to build a vibratome that meets real-world lab challenges. With the 9000smz, you can expect:
- Cleaner slices
- Higher reproducibility
- Confidence from the very first cut
Customer Spotlights
Dr. Gareth Morris (University of Manchester and University College London) talks about his research and how the use of Brain Slices provides an invaluable, in vitro research tool.
Dr Kate Connor from Trinity College Dublin talks about her research into the development of clinically relevant cancer models and the use of brain slices for model validation.
Features

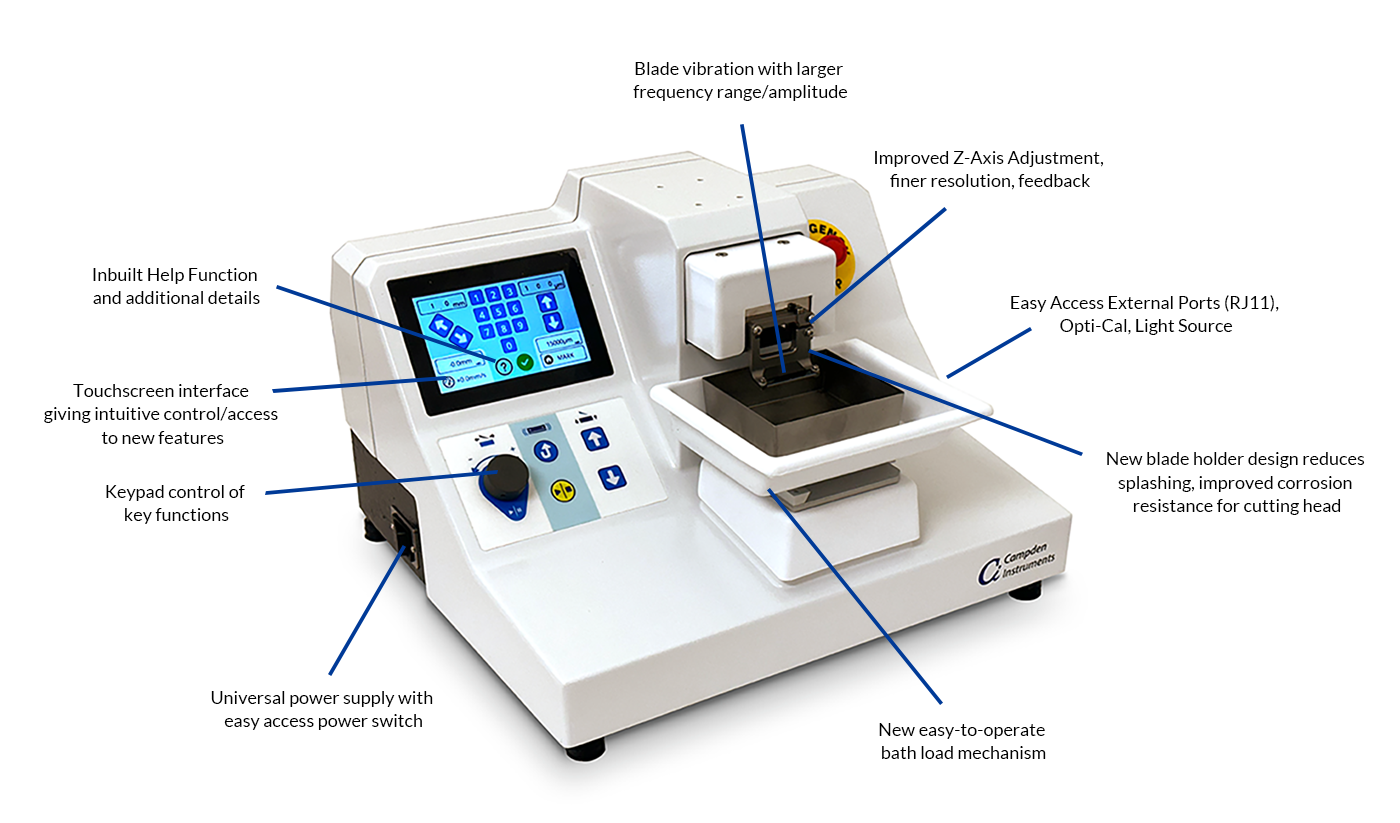

Evolution: Meet the 9000smz Vibrating Microtome
Specifications
Science

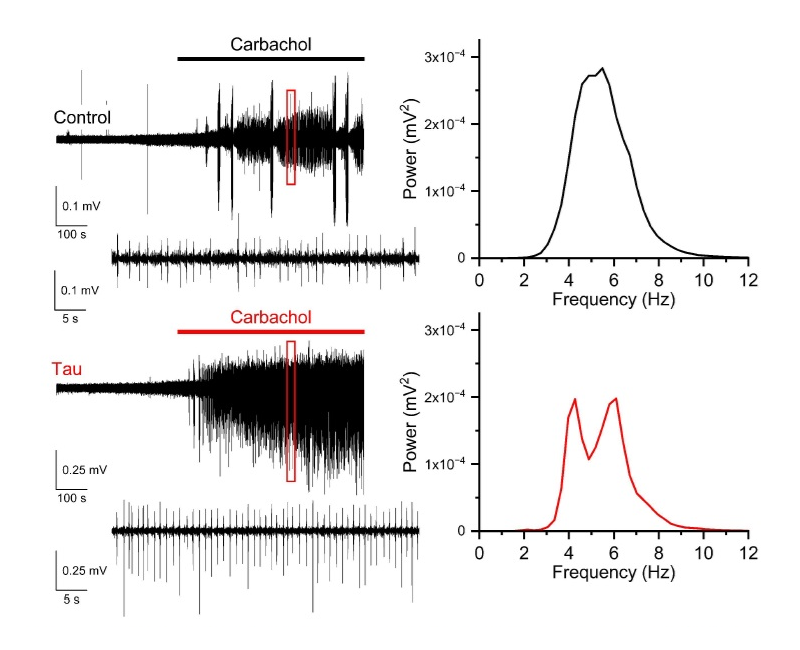

Oscillations in slices from 3 week-old mice*
Neuronal oscillations in the theta frequency range (4 - 8 Hz) induced by the acetylcholine muscarinic receptor agonist carbachol (50 μM) in hippocampal area CA3 from 3 week-old C57BL/6J mice. Slices were either incubated in control aCSF or in aCSF supplemented with sonicated recombinant human tau preformed fibrils (133 nM; rPeptide; CF-1001-1). Left panels: raw electrophysiological traces showing induction of oscillations after carbachol, and 25 s of activity (red boxed region; lower traces). Right panels: spectrograms of theta activity induced by carbachol in both conditions.

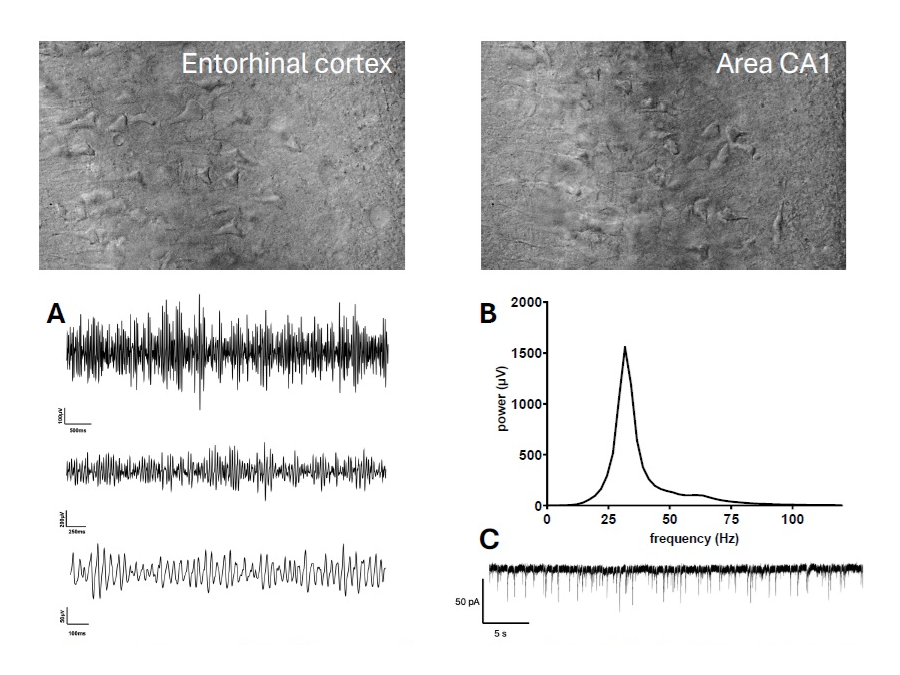

Oscillations in slices from 9 month-old rats
Improved microtome design allows neuronal preservation and physiological oscillations in older rats (9 months). Above: DIC images from entorhinal cortex and area CA1.
- Raw electrophysiological data at increasing magnification demonstrating characteristic spontaneous sawtooth gamma oscillations in LFP recordings (450 μm slice).
- Panel shows example FFT from LFP recording in hippocampus with no added drugs, with high power in gamma range and excellent coherence.
- Whole-cell patch-clamp recording from hippocampal cell with regular EPSCs and stable baseline (350 μm slice).
Immunohistochemistry*
Brainstem
Maximum intensity projections of confocal images showing choline acetyltransferase (ChAT)+ neurons (left, yellow) and glial fibrillary acidic protein (GFAP)+ astroglia (right, red) in40 μm thick mouse brainstem sections. Scale bars = 20 μm
Hippocampus*
Left: Iba1 staining of LPS-stimulated microglia in the CA1 region of a 200 μm hippocampal slice. Right: highlighted region of interest. Scale bars = 50 μm
* Adwoa Boaten, Ben Hopkins, Tegan Lawrence, Beth Rees, Amol Bhandare, Stuart Greenhill, Gavin Woodhall, Mark Wall, Bruno Frenguelli School of Life Sciences, University of Warwick, Coventry, UK CV4 7AL. Institute of Health and Neurodevelopment, Aston University, Birmingham, UK B4 7ET
